CATV LAN Wall Mount Fiber Distribution Box 16 Cores Fiber Optic Cable Junction Box

Name: CATV LAN Wall Mount Fiber Distribution Box 16 Cores Fiber Optic Cable Junction Box
Brand: JINWO
Price: 1 USD

China CATV LAN Wall Mount Fiber Distribution Box 16 Cores Fiber Optic Cable Junction Box wholesale

Brand Name : JINWO

Model Number : JW-FB-013

Certification : ROHS

Place of Origin : NINGBO,CHINA

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 50000pcs each month

Delivery Time : 8work days

Packaging Details : Noraml Or Request Packing

Product Name : FTTH Terminal Box

Material : PC/ABS

Dimension : 300*240*100mm

IP Rate : IP65,UV Protection

Ports : 2 Inlet 16 Outlet

Capacity : 16 Cores

Use : Pole/Wall Mountable

High Light : Optical Distribution Box, Fiber Optic Splitter Box

Contact Now

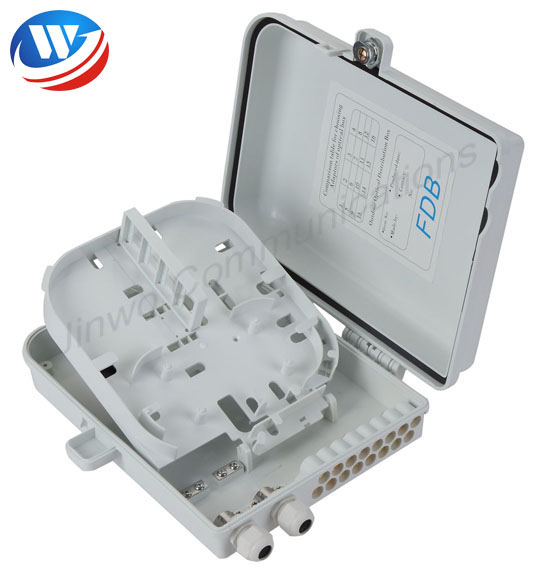

16F FTTH Point Outdoor Fiber Distribution Box

Description:

Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.

Features:

The box is made of ABS, and lifetime is more than 20 years.

It also can be used under -30°c.

Bi-layer structure design. The upper layer is for optical splitter, the other layer is for fiber splicing.

Easy to operate. Usually installed as wall mounted in the building or at the green belt.

It can accommodate 16 pcs SC Simplex or LC Duplex dapters.

It can be designed to client requirements.

It meets YD/T988-2007 standards.

Application:

FTTH access network

CATV Networks
Telecommunication Networks
Data communications Networks

Operation conditions:

Temperatures:-40℃ — 60℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa
